Type Approval

　　As you are aware of, IMO (International Maritime Organization) have reinforced the rules & regulations for fire protection. According to the 74 SOLAS 94 Amendment Chapter II-2 Regulation 15.2.11, all ships with diesel engines of max. continuous rating 375kW or more are required to apply proper protective measures to prevent the leakage and splashing of flammable oils (fuel oil, lubricating oil, etc.) from FO, LO & other pipings for protection of engine room fires to be caused by leaked flammable oil splashing onto high-temperature surfaces or spots as potential sources of ignition in engine room.

　　This Regulation II-2/15 of the SOLAS 94 Amendment entered into force on July 1, 1998 effective for new shipbuilding, and the ships, which were built before July 1, 1998, are of 500 Gross Tons or over and are engaged in international operation service, shall also comply with the requirements by July 1, 2003.

　　FN Tape and Sheet are the products we've developed and manufactured, which are fully 100% complied with the requirements of the SOLAS 94 Amendment Reg. II-2/15.2.11 and are type-approved by major ship's classification societies worldwide, and FN Tape & Sheet products have been patented in Japan and overseas countries.

　　In May, 1999, we're the first winner in Japan of "Seatrade AWARDS 1999", which is called as Nobel prize of sea, given by Chairman of IMO for a highly commended contribution of these FN Tape & Sheet to the safety at sea.

　　Our FN Tape & Sheet are the first type-approved products in the world by major ship's classification societies, for the purposes to prevent the splashing of flammable oils in ship's engine room in accordance with the SOLAS 94 Amendment Reg. II-2/15.2.11.

　　Due to FN Tape & Sheet's proven reliable high performance and profitability, etc. based upon its work efficiency, our products have widely been used for flange connections & mechanical joints, etc. in the pipings of main engines, generator engines, auxiliary machinery & equipment for conventional ships, new shipbuilding and ship repairing not only in Japan and Korea but also in major overseas countries & areas such as Asia, Europe, U.S.A., Middle East, etc.

(Reference)
Details of approval by Lloyd's Register (LR)
-Range of Approval : All pipes and joints for heavey fuel oil
-Applicable nominal diameter : ∮6～ ∮300 (mm)
-Applicable max. temperature : 150(℃)
-Applicable max. pressure : 1.5 (Mpa)

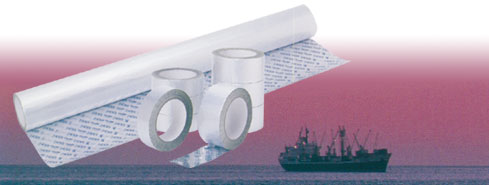

Details for Standard FN Tape and Sheet ●Details for Standard FN Tape and Sheet All the following sizes of FN Tape & Sheet and No. of rolls/carton are determined by us in pursuit of the easiness to use thru our own actual practices. You're, therefore, requested to be careful with other similar products. Code No. Size Width × Length／Roll Package per Carton Contents Measurement (cm) L × W × H Gross Weight (kg) FN892-35 35mm × 10m 28 rolls 25 × 25 × 28 6.5 FN892-50 50mm × 10m 20 rolls 25 × 25 × 28 6.5 FN892-75 75mm × 10m 13 rolls 15 × 15 × 105 7.0 FN892-100 100mm × 10m 10 rolls 15 × 15 × 105 7.0 FN892-140 140mm × 10m 7 rolls 15 × 15 × 105 7.0 FN892-250 250mm × 10m 4 rolls 15 × 15 × 105 7.0 FN892-500 500mm × 10m 2 rolls 15 × 15 × 105 7.0 FN892-1000 1000mm × 10m 1 roll 15 × 15 × 105 7.0 (Photo of FN Tape.) ●Kit form of FN Tape（for Conventional Vessels） Code No. Size Width × Length/Roll Small Box Contents Gross Weight Measurement(cm) S-310 35mm×10m 10 rolls 3.2kgs 12.5×12.5×37 S-507 50mm×10m 7 rolls 3.2kgs S-3454 35mm×10m 4 rolls 2.4kgs 50mm×10m 4 rolls S-14136 140mm×10m 1 roll 2.4kgs 35mm×10m 6 rolls S-14154 140mm×10m 1 roll 2.5kgs 50mm×10m 4 rolls S-14232 140mm×10m 2 rolls 2.3kgs 35mm×10m 2 rolls ●Example of Small Box Packing Delivery Unit: Carton Box Packing in Small Box 4pcs Package Size: 270mm×270mm×370mm (Photo of FN Tape kit.)
