Product

Leak None Tape #117


Three Distinctive Feature
Excellent workability
Leak None Tape #117 is not using the adhesive materials. It is good workability in order to not stick to the hand and circumference. This tape is made self-adhesion with in 20~30 minutes by taping overlap about 1/2width to the materials (by making about2~3mm narrow of width of tape). It is no need to install by band.

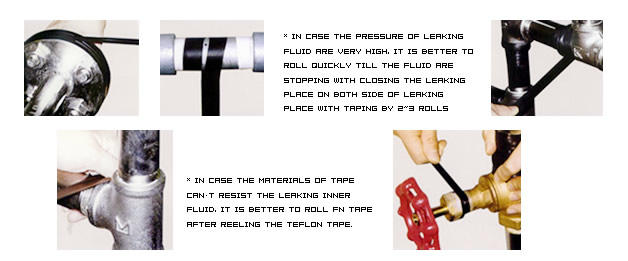

Applicable to execute of taping in water
Leak None Tape #117 is able to stop the leaking liquid (abour2~3kg/cm2) and to tape in water.
In this case, it must winded by hand tightly to avoid invading the water or trash.
Applying for various materials/uses.
Leak None Tape #117 has materials and performance efficiency not only with protecting the leakage but also preventing the salt injury and the corrosion under the ground and/or electric insulation. It is capable to use frequently metal, gum and/or PVC and other plastic resin and piping stick materials or line materials etc.
Composition, Specification and Character for Tape

For using
For preventing the leakage and splash of inner pressure fluid in liquid, air and powder etc, from metal pipe or hose.
For preventing of corrosion of exposure metal portion or metal pipe, underground pipe forward water seawater bath, etc.
Excellent weather-ability and resisting ozone and using for all cable, insulating cover for cable, treatment and repairs etc.

Mesurement List for Leak None Tape#117

Product No. Size of Product Packing Specification Weight
  T×W×L(mm) Q’ty/Box Box Size(mm) (kgs)
LN2510 0.5mm×25mm×5m 24rolls
LN3810 0.5mm×38mm×5m 16rolls
LN5010 0.5mm×50mm×5m 12rolls

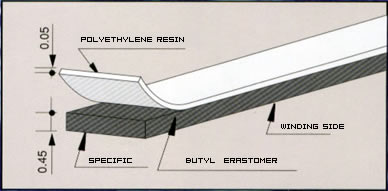

Composition,Specification and Character for Tape

1. Composion


2. Specification and Character
Thickness and Color for Tape 0.5mm Black
Tensile Strength 0.65
Espansion Normal
(%) Max
520
50~520
Peel Adhesion(kg) 3.5 (20mm width)
Heat Resistance Normal -18℃~+80℃
Limit Low Temparature -40℃
Pressure Resistance
(kg/cm2)
1~5(4 ply)
5~10(7 ply)
Weather ability NO extraordinary in 100h. by Weathermeter
Weater Resistance NO extraordinary in no leak, no swelling
Weater Resistance Taber S-35. Weight 1kg NO extraordinary
Insulates Resistance(Ω-㎝) 10×10
Destruction Voltage(kv/mm) 33
Tracking Resistance OA Liquid of stain 101 cycle

3. Resisting to Oil/Solvent
Name Ratio of distension Evaluation
Aceton
Athanol
Ethylene
Glycol
Methanol
1~10%   1%
1%
Resistibility
No Influence to the function
Dyoctylphthalate
Methyl
Ethyl
Ketone
1~10%
10%
1%
No Influence to the function Though expansion
Engine Oil
Machine Oil
10% Retain taping condition though expansion
Gasoline
Hexane
Toluene
No using due to the dissolution at portion
